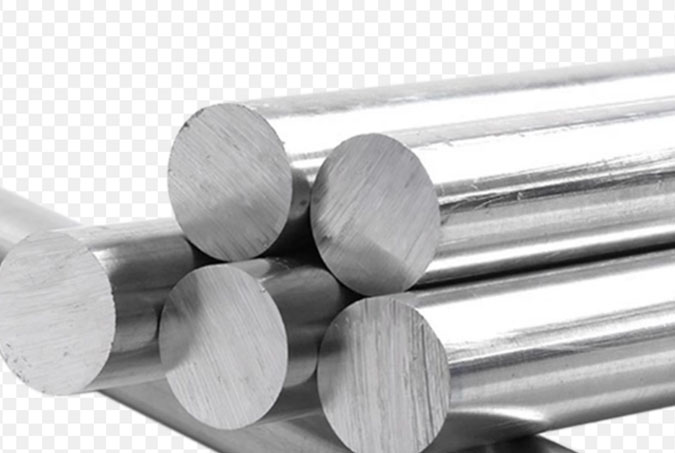

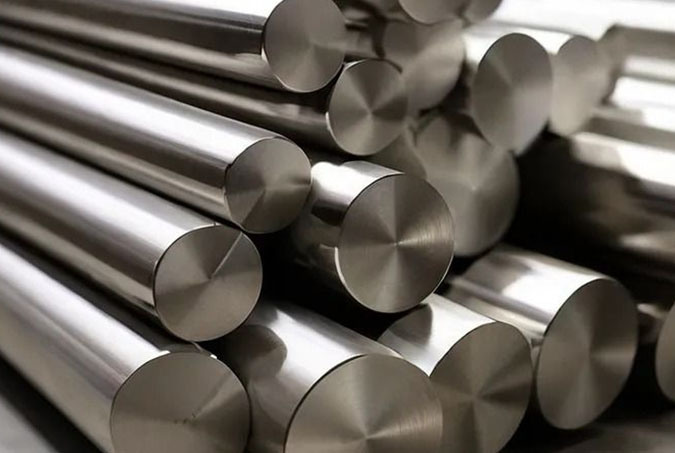

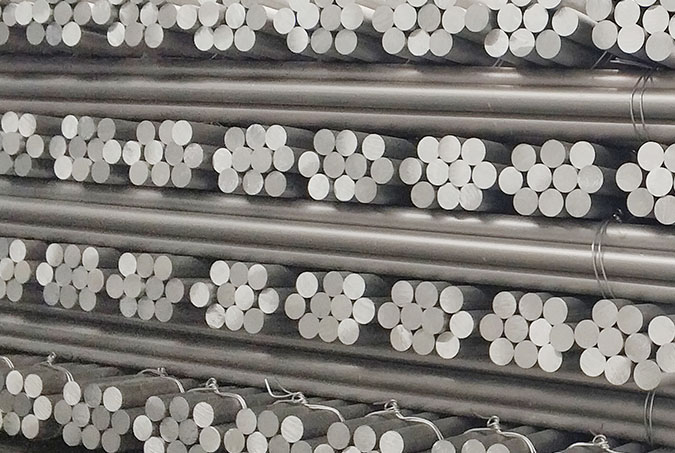

5052 Aluminum Round Bar
Introduction
5052 Aluminum Bars are made with an alloy mixture of Aluminum with chromium and magnesium mixed in the ratio of 2.5% magnesium and 0.25% chromium. The Magnesium content helps the bars to have better performance at low-temperature applications and the chromium content helps the ASTM B221 Aluminum 5052 Bars to have better resistivity against corrosion in various corrosive environments.
The Introduction of 5052 aluminum round bar
5052 Aluminum Bars are made with an alloy mixture of Aluminum with chromium and magnesium mixed in the ratio of 2.5% magnesium and 0.25% chromium. The Magnesium content helps the bars to have better performance at low-temperature applications and the chromium content helps the ASTM B221 Aluminum 5052 Bars to have better resistivity against corrosion in various corrosive environments.
The Product Specification of 5052 aluminum round bar
|
Alloy |
5052 aluminum round bar |
|
Temper |
O,H12,H14,H16,H18,H19,H22,H24,H26,H28,h22,h24,h26,h28,H111,H112,H114,H 116,h221 |
|
Diameter |
30-2000mm |
|
Length (mm) |
customized as required |
|
MOQ |
5 TON |
Chemical composition
|
Alloy |
Si |
Fe |
Cu |
Mn |
Mg |
Cr |
Zn |
Ti |
Al |
Others |
|
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Max |
Min | ||
|
5052 |
0.25 |
0.4 |
0.1 |
0.1 |
2.2-2.8 |
0.15-0.35
|
0.1 |
The Remaining |
0.15 |
Mechanical properties:
|
Tensile Strength (σb) Mpa |
Yield strength σ0.2(MPa) |
Elastic modulus(E) |
Annealing temperature |
|
170-305 |
65 |
69.3～70.7 |
345℃ |
The Product Features of 5052 aluminum Round Bar
● 5052 aluminum has excellent corrosion resistance and is widely used in marine environments, chemical storage containers, and tank manufacturing.
● 5052 aluminum is lightweight, high-strength, and easy to weld, suitable for aerospace, fuel pipes, ships, car bodies, buildings, and sheet metal parts.
● 5052 aluminum can enhance its performance through heat treatment, suitable for applications requiring customized performance, such as storage tanks, and pressure vessels.
● 5052 aluminum has fatigue resistance and is suitable for applications that require long-term stress resistance, such as aircraft components, gear shafts, and wheels.
● 5052 aluminum is a non-magnetic material suitable for applications that do not allow magnetic interference, such as electronic products and electrical manufacturing.
● 5052 aluminum is easy to cold work and suitable for manufacturing complex shaped components, such as road signs, containers, pedals, and building panels.
